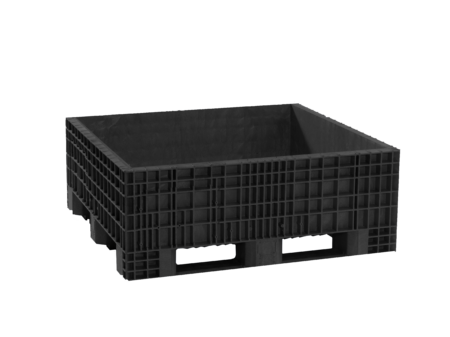

BF484519XP

48″ x 45″ x 19″ | Fixed Wall | Transport Tub

Description

Model: BF484519XP

Specification Metric Conversion
External Dimensions (Outside Top)
Length 48.0″ 1219 mm
Width 45.0″ 1143 mm
Height 19.0″ 483 mm
Internal Dimensions (Inside Bottom)
Length 44.5″ 1130 mm
Width 41.6″ 1057 mm
Useable Height 12.2″ 310 mm
Fork Tunnel Dimensions (Long Side)
Width 11.6″ 295 mm
Height 3.3″ 84 mm
Fork Tunnel Dimensions (Short Side)
Width 11.9″ 302 mm
Height 3.4″ 86 mm
Capacity
Weight 2,300 lbs. 1044 kg
Volume 13.07 cu. ft. 370.1 l
Other Features
Tare Weight 118 lbs. 54 kg
Shipping
Return Ratio 1:1
53′ Truck Capacity – Stacked/Open 130

* Capacity is dependent upon application and use environment. It is based on equally distributed loads. Elevated temperatures or concentrated loads may affect capacity. Check with Buckhorn for suitability in your application. Specifications subject to change without notice. All dimensions are approximate.

Request More Info

Additional information

Footprint

48" x 45" x 19"

Description

Fixed Wall, Transport Tub

Available Options

ID Tags, Label Placards, Cardholders, Bar Coding, Sequential Numbering, Colors

Industries

Automotive, Industrial Manufacturing
