Description

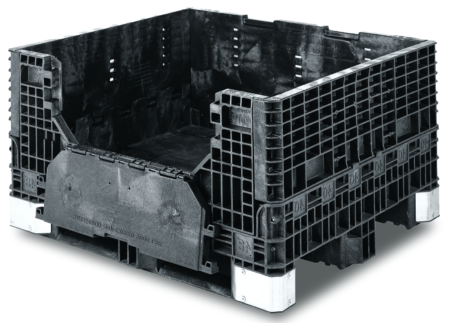

Model: BH48402520
| Specification | Metric Conversion | |
|---|---|---|
| External Dimensions (Outside Top) | ||
| Length | 47.6″ | 1209.0 mm |
| Width | 39.8″ | 1010.9 mm |
| Height | 25.0″ | 635.0 mm |
| Internal Dimensions (Inside Bottom) | ||
| Length | 44.0″ | 1117.6 mm |
| Width | 36.3″ | 922.0 mm |
| Useable Height | 18.3″ | 464.8 mm |
| Door Opening Dimensions (Long Side) | ||
| Length | 27.1″ | 688.3 mm |
| Depth | 10.7″ | 271.8 mm |
| Fork Tunnel Dimensions (Long Side) | ||
| Width | 11.8″ | 299.7 mm |
| Height | 3.2″ | 81.3 mm |
| Fork Tunnel Dimensions (Short Side) | ||
| Width | 10.4″ | 264.2 mm |
| Height | 4.1″ | 104.1 mm |
| Capacity | ||
| Weight | 2500 lbs. | 1134 kg |
| Volume | 16.9 cu. ft. | 478.6 l |
| Other Features | ||
| Collapsed Height | 14.1″ | 358.1 mm |
| Tare Weight | 121.3 lbs. | 55.0 kg |
| Shipping | ||
| Return Ratio | 2.1:1 | – |
| 53′ Truck Capacity – Stacked/Open | 120 | – |
| 53′ Truck Capacity – Nested/Collapsed | 240 | – |
* Capacity is dependent upon application and use environment. It is based on equally distributed loads. Elevated temperatures or concentrated loads may affect capacity. Check with Buckhorn for suitability in your application. Specifications subject to change without notice. All dimensions are approximate.
