Description

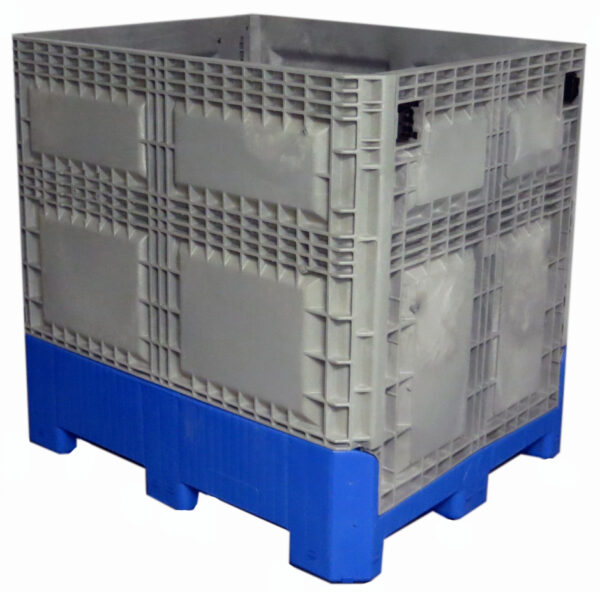

Model: BG48404602
| Specification | Metric Conversion | |
|---|---|---|
| External Dimensions (Outside Top) | ||
| Length | 48.0″ | 1219.2 mm |
| Width | 40.0″ | 1016.0 mm |
| Height | 46.0″ | 1168.4 mm |
| Internal Dimensions (Inside Bottom) | ||
| Length | 45.0″ | 1143.0 mm |
| Width | 37.0″ | 939.8 mm |
| Useable Height | 40.0″ | 1016.0 mm |
| Door Opening Dimensions (Long Side) | ||
| Length | 33.5″ | 850.9 mm |
| Depth | 23.1″ | 586.7 mm |
| Fork Tunnel Dimensions (Long Side) | ||
| Width | 13.0″ | 330.2 mm |
| Height | 3.5″ | 88.9 mm |
| Fork Tunnel Dimensions (Short Side) | ||
| Width | 12.0″ | 304.8 mm |
| Height | 3.5″ | 88.9 mm |
| Capacity | ||
| Weight | 1,200 lbs. | 544 kg |
| Volume | 38.5 cu. ft. | 1090.2 l |
| Other Features | ||
| Collapsed Height | 15.3″ | 388.6 mm |
| Tare Weight | 142.0 lbs. | 64.4 kg |
| Shipping | ||
| Return Ratio | 3.6:1 | – |
| 53′ Truck Capacity – Stacked/Open | 60 | – |
| 53′ Truck Capacity – Nested/Collapsed | 240 | – |
* BG models are available with nine feet or five plastic runners. All specifications are based on the version with nine feet. Add 1.5″ to the height for versions with five runners. Add 0.5″ to fork tunnel height for versions with five runners. Capacity is dependent upon application and use environment. It is is based on equally distributed loads. Elevated temperatures or concentrated loads may affect capacity. Truck capacity based on versions with nine feet. Call Buckhorn for versions with five runners. Check with Buckhorn for suitability in your application. Specifications subject to change without notice. All dimensions are approximate.
