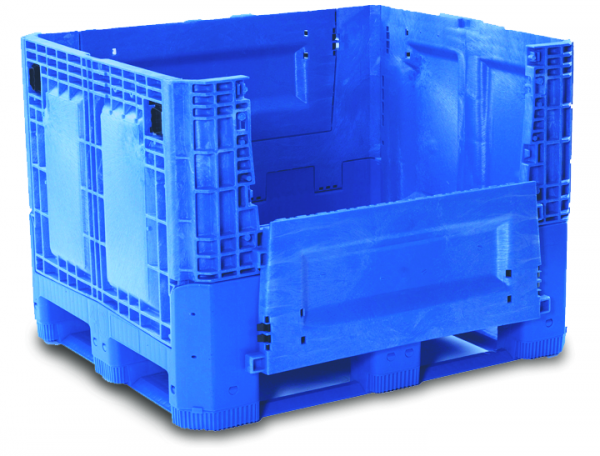

BG48403320

48″ x 40″ x 33″ | Two Drop Doors on Length, 5 Plastic Runners

Description



Model: BG48403320

Specification Metric Conversion
External Dimensions (Outside Top)
Length 48.0″ 1219.2 mm
Width 40.0″ 1016.0 mm
Height 33.0″ 838.2 mm
Internal Dimensions (Inside Bottom)
Length 45.0″ 1143.0 mm
Width 37.0″ 939.8 mm
Useable Height 27.0″ 685.8 mm
Door Opening Dimensions (Long Side)
Length 33.5″ 850.9 mm
Depth 14.1″ 358.1 mm
Fork Tunnel Dimensions (Long Side)
Width 13.0″ 330.2 mm
Height 3.5″ 88.9 mm
Fork Tunnel Dimensions (Short Side)
Width 12.0″ 304.8 mm
Height 3.5″ 88.9 mm
Capacity
Weight 1,200 lbs. 544 kg
Volume 28.3 cu. ft. 801.4 l
Other Features
Collapsed Height 15.3″ 388.6 mm
Tare Weight 129.0 lbs. 58.5 kg
Shipping
Return Ratio 2.2:1
53′ Truck Capacity – Stacked/Open 90
53′ Truck Capacity – Nested/Collapsed 240

* BG models are available with nine feet or five plastic runners. All specifications are based on the version with nine feet. Add 1.5″ to the height for versions with five runners. Add 0.5″ to fork tunnel height for versions with five runners. Capacity is dependent upon application and use environment. It is is based on equally distributed loads. Elevated temperatures or concentrated loads may affect capacity. Truck capacity based on versions with nine feet. Call Buckhorn for versions with five runners. Check with Buckhorn for suitability in your application. Specifications subject to change without notice. All dimensions are approximate.

Request More Info

Additional information

Footprint

48" x 40" x 33"

Description

Two Drop Doors on Length, 5 Plastic Runners

Standard Colors

Blue

Available Options

9 Feet, No Drop-Doors (Solid Walls), ID Tags, Label Placards, Cardholders, Bar Coding, Sequential Numbering, Standard Colors
